GeoMax Zenith06: New entry level GNSS smart antenna


GeoMax is pleased to inform you about the release of a new GeoMax GNSS smart Antenna, the Zenith06.

The Zenith06 entry-level smart antenna, with X-PAD Ultimate software, is a solution that offers both simplicity and accuracy while being cost-effective.

The Zenith06 is an ideal instrument for a full day's work in the field. With its compact, lightweight design, the smart antenna is easy to carry and gentle on your body. This makes jobs such as utility surveying and road construction with hundreds of points across a large area much more convenient. The easy to use and compact GNSS rover together with the user-friendly field software eliminate the need for expensive training and experience to produce reliable outcomes.

The software X-PAD has an intuitive workflow, developed side by side with the customer, which allows for quick familiarisation. The software maintenance comes at no extra cost. The Zenith06 is perfectly embedded in the versatile GeoMax product and service portfolio. In combination with GeoMax X-PAD Ultimate software, field controllers and widely appreciated support and services, GeoMax provides a convenient GNSS solution that saves time, money and adds flexibility to your workflow.

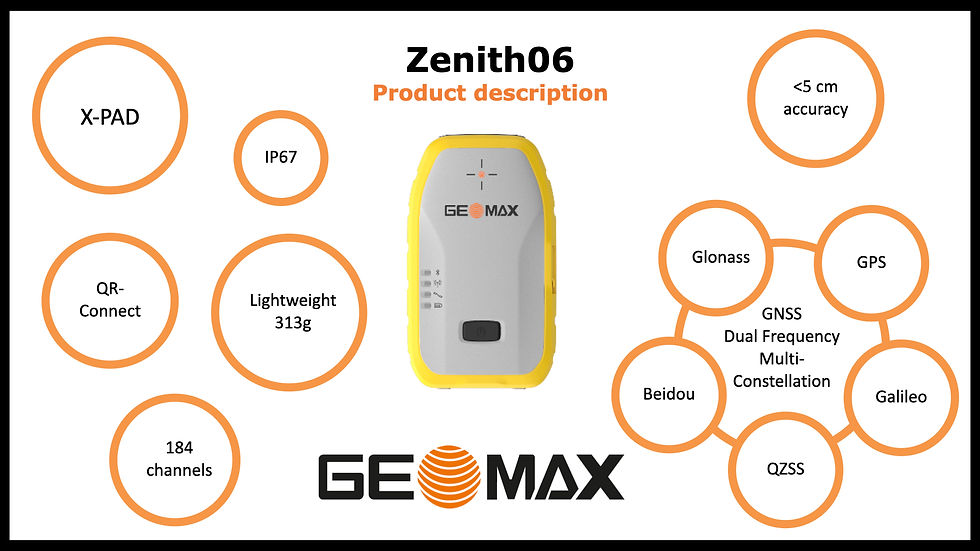

Technical Specifications

  • Support of 184 channels

  • Support of GPS, GLONASS, BeiDou, Galileo and QZSS navigation systems

  • Accuracy

- Static Hz/V: 20mm+1ppm/ 30mm+1ppm - RTK Hz/V: 20mm+1 ppm/ 30mm+1ppm

  • QR-iConnect functionality

  • USB & BluetoothTM communication

  • Very robust

- IP67 Dust tight and withstands powerful water jets. - Operating temp. -40°C to 65°C • Integrated in the GeoMax Software - Zenith Manager Android based App o Zenith Manager PC based configuration - X-PAD Ultimate – fully integrated in field software



Download the information sheet
